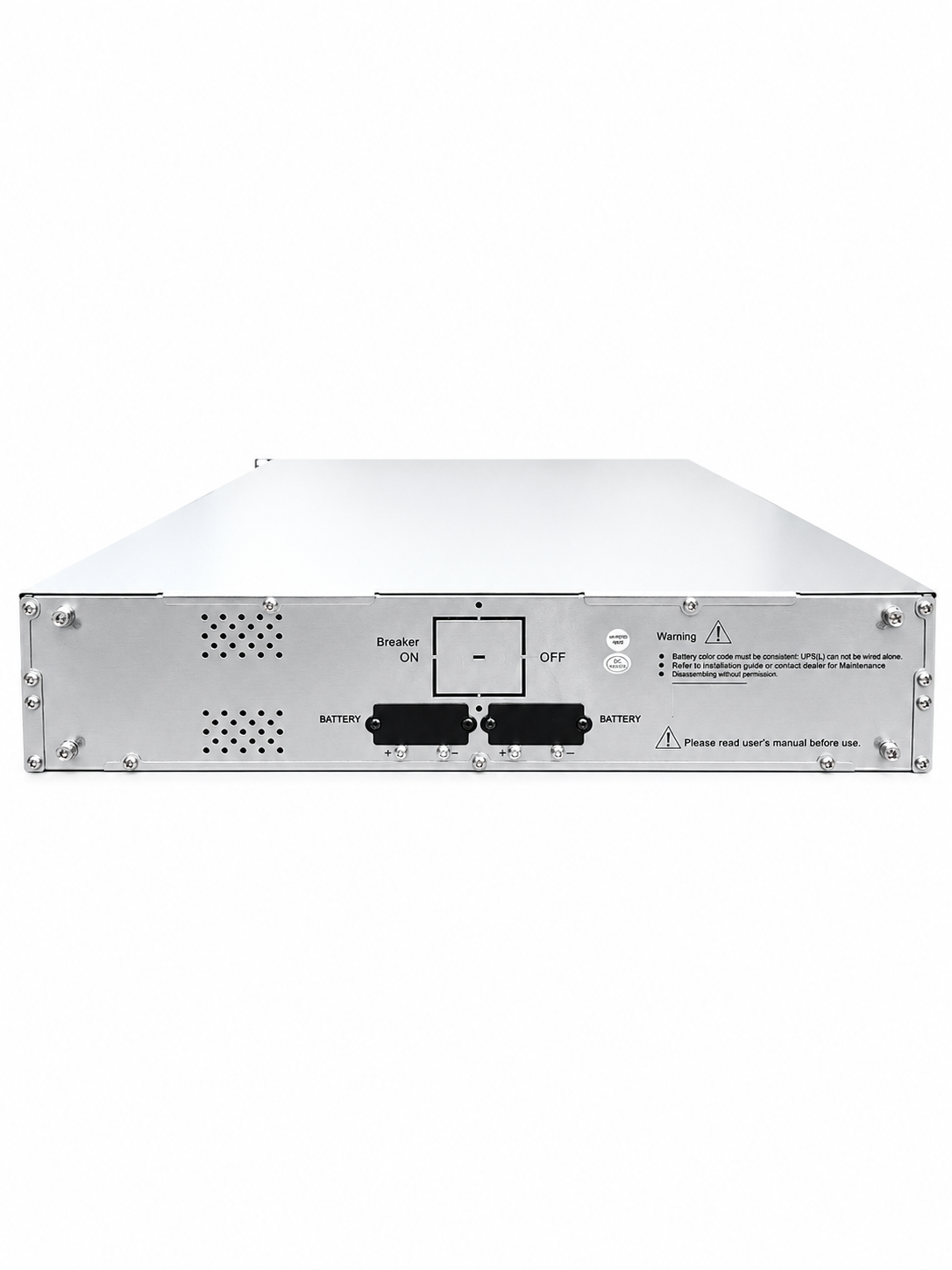

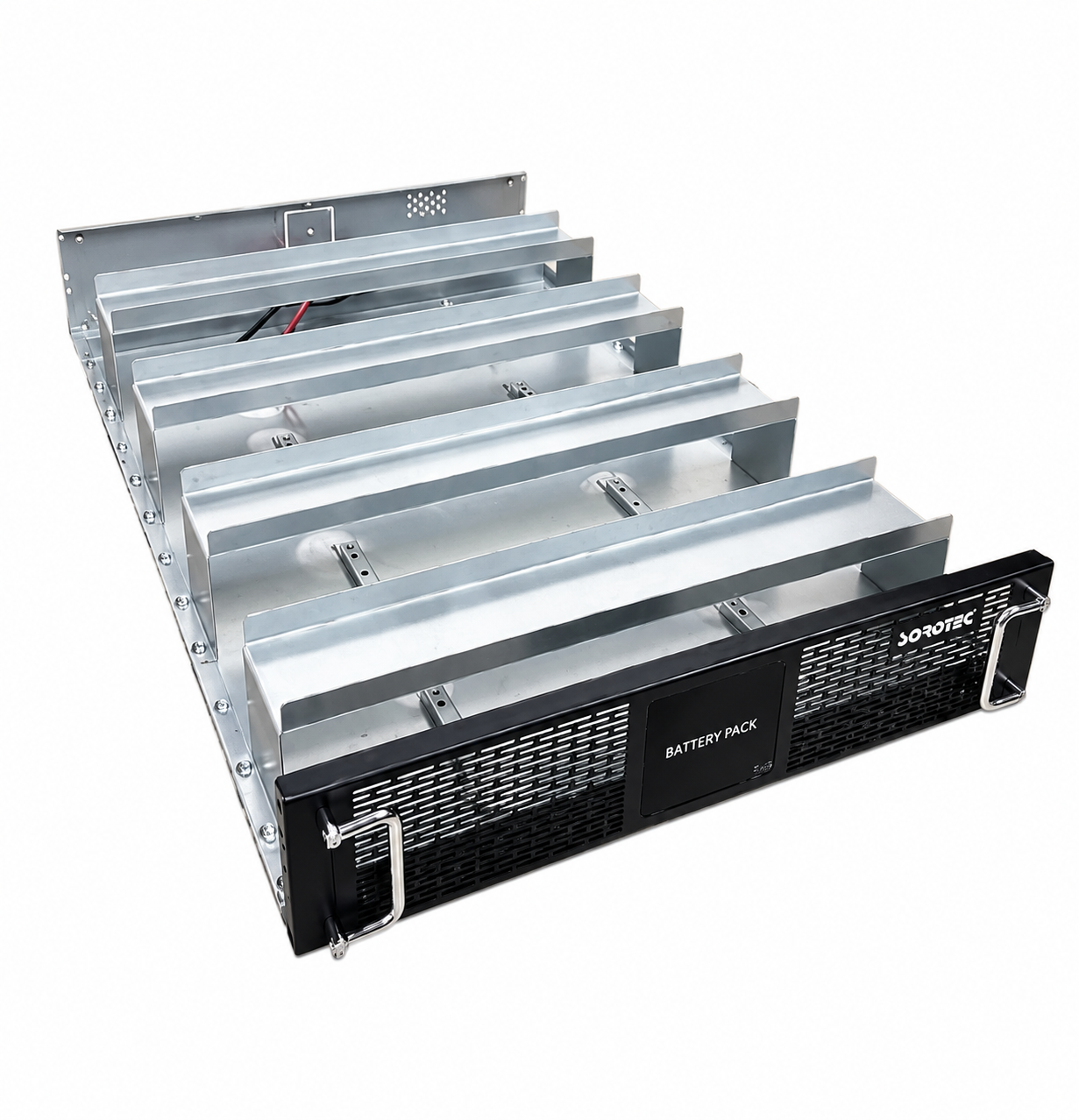

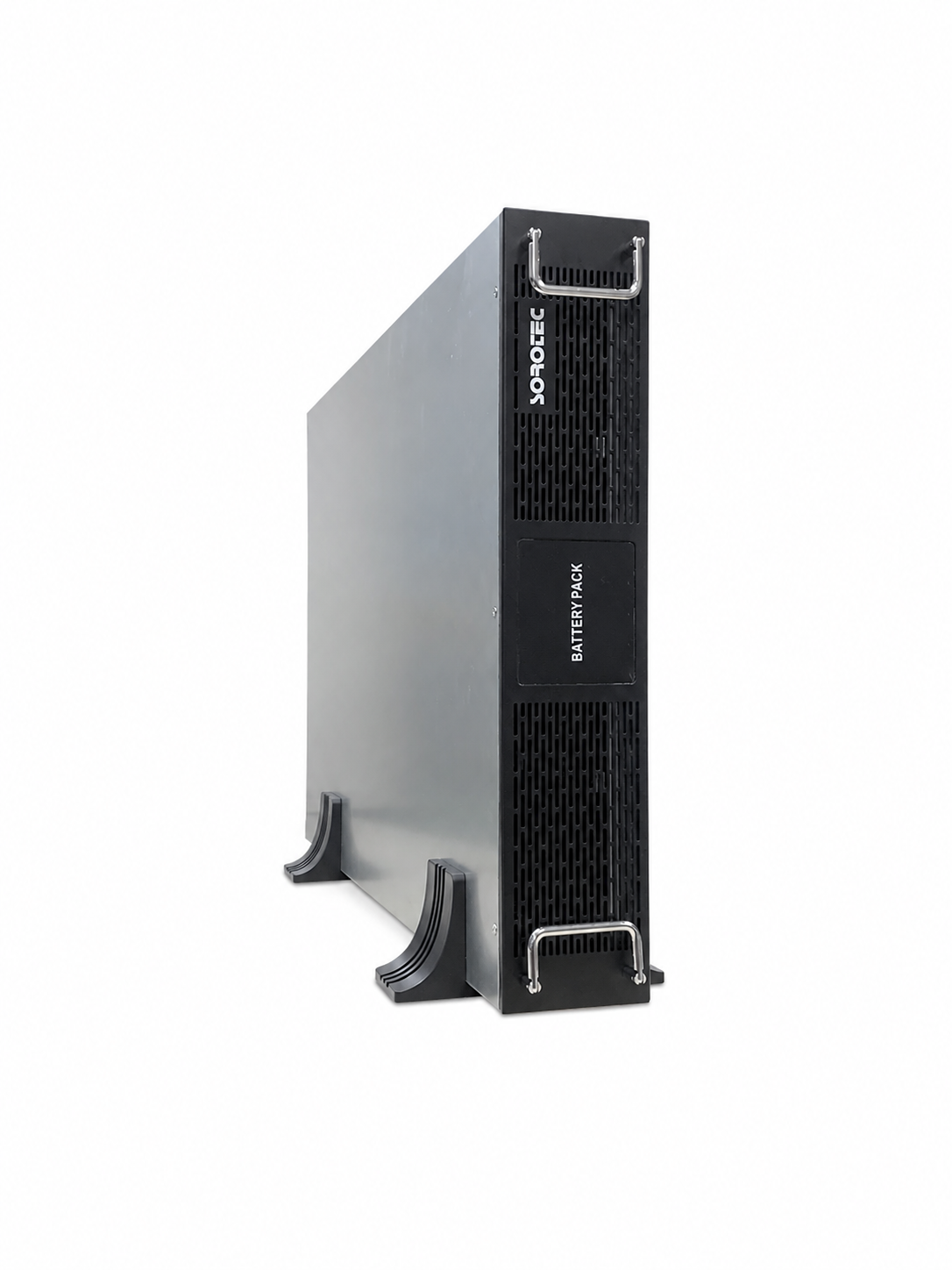

Rack-mounted battery is an energy storage solution designed according to the 19-inch rack standard, commonly used in UPS systems, inverters, data centers, telecommunications, and industrial applications. The product is optimized for compact installation, flexible expansion, and easy management within a rack cabinet.
- Key Advantages
- Compact 19” rack design – quick installation and maximum space saving.
- Flexible scalability – easy to add modules to extend backup time.
- High stability – provides continuous power, minimizing system downtime.
- High safety – integrated protection against overvoltage, overcurrent, overheating, and short circuit.
- Easy management & maintenance – convenient replacement, reduced operating costs
- Typical Applications
- Data centers, server rooms
- Telecommunications systems, IT networks
- Medical equipment, surveillance cameras, security systems
- Factories and industrial automation systems
- Key Benefits
- Stable and continuous backup power supply
- Optimized installation space
- Easy expansion as power demand increases
- Enhanced reliability for power systems
| PRODUCT OVERVIEW |
| Material |
Steel |
| Enclosure |
Steel with standard protective coating (non-electrostatic) |
| Design |
Rack-mount (slim) & tower |
| Color |
White (enclosure) – Black (front panel) |
| BATTERY |
| Battery type |
Sealed lead-acid battery |
| Battery configuration |
12V7.2Ah × 15 |
| PHYSICAL DIMENSIONS |
| Cabinet dimensions (D × W × H) (mm) |
690 x 440 x 85 ± 2% |
| Weight (kg) |
45.6 ± 2% |
| Rack mounting height (U) |
2 |
